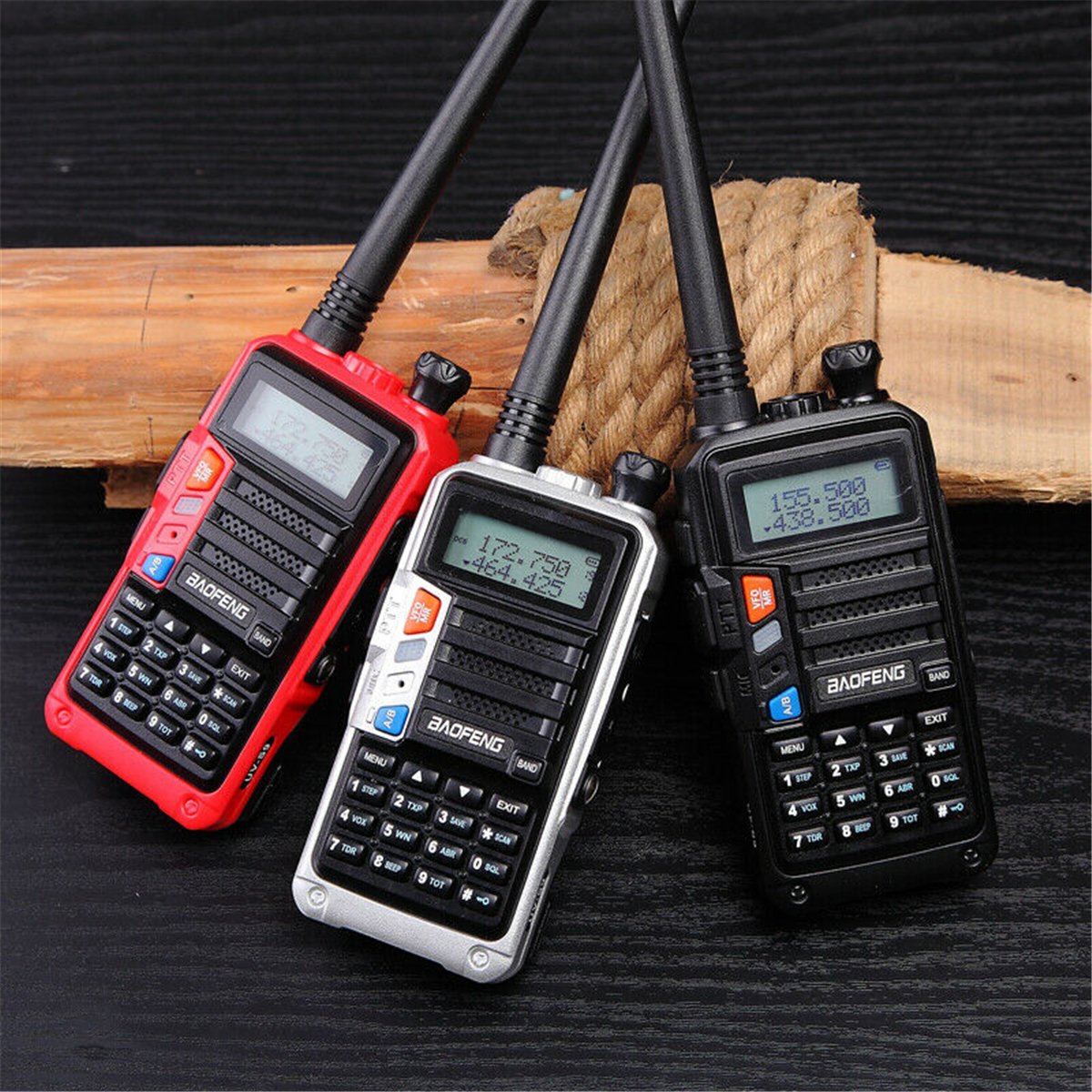

BaoFeng UV-B3 Plus Walkie Talkie VHF UHF 128 Channels Two Way Radio CB Funk-Transceiver 8W 10km Long Range AU Plug

SKU: 10033

В момента този артикул не е наличен.



1. Dual-band handheld transceiver with display function menu on the display ldquoLCDrdquo.
2. DTMF encoded.
3. Lithium-ion battery with high capacity.
4. Commercial FM radio receiver (65MHz~108MHz).
5. Incorporates 105 codes ldquoDCSrdquo and 50privacy codes ldquoCTCSSrdquo programmable.
6. Function ldquoVOXrdquo(voice operated transmission).
7. Alarm function.
8. Up to 128 memory channels.
9. Broadband (Wide)/Narrowband (Narrow), selectable.
10. High/low power selectable.
11. Display illumination and programmable keyboard.
12. Function ldquobeeprdquo on the keyboard.
13. Dual Watch/dual reception.
14. Selectable Frequency Step.
15. Function ldquoOFFSETrdquo (frequency offset for repeater access).
16. Battery saving function.
17. Timer transmission ldquoTOTrdquo programmable.
18. Selecting the Scan Mode.
19. Busy Channel Lock.
20. Built-in RX CTCSS/DCS scan.
21. Built-in LED flashlight.
22. Programmable by PC.
23. Level Threshold ldquoSquelchrdquo adjustable from 0 to 9.
24. Cross band reception.
25. Tone end of transmission.
26. Built-in key lock.


Frequency scope VHF: 136MHz-174MHz (Rx/Tx)
UHF: 400MHz-520MHz (Rx/Tx)
65MHz-108MHz (Qnly commercial FM radio reception)
Memory channels Up to 128 channels
Frequency stability 2.5ppm
Frequency step 2.5/5/6.25/10/12.5/25KHz
Antenna impedance 50 OHM
Operating temperature -20degC-60degC
Supply voltage Rechargeable Lithium-Ion 7.4V
Battery Capacity 3800mAh
Consumption in standby <=75mA
Consumption in reception 380mA
Consumption in transmission <=1.4A
Mode of operation Simplex or semi-duplex
Dimensions 110 x 58 x 32mm
Weight 130g (approximate)
RF power 8W/1W
Modulation type FM
Emission class 16K oslashF3E/11KoslashF3E(W/N)
Maximum deviation <=plusmn5KHz/<=plusmn2.5KHz(W/N)
Spurious emission <-60dB
Receiver sensitivity 0.2microV (at 12 dB SINAD)
Inter modulation 60dB
Audio output 1000mW
Adjacent channel selectivity 65/60dB


Package included:
1 x Portable radio
1 x Inductively loaded antenna
1 x 2800mAh Li-ion battery pack
1 x LI-ion charger
1 x Belt clip
1 x The Sling
1 x User’s manual
1 x USB Cable
