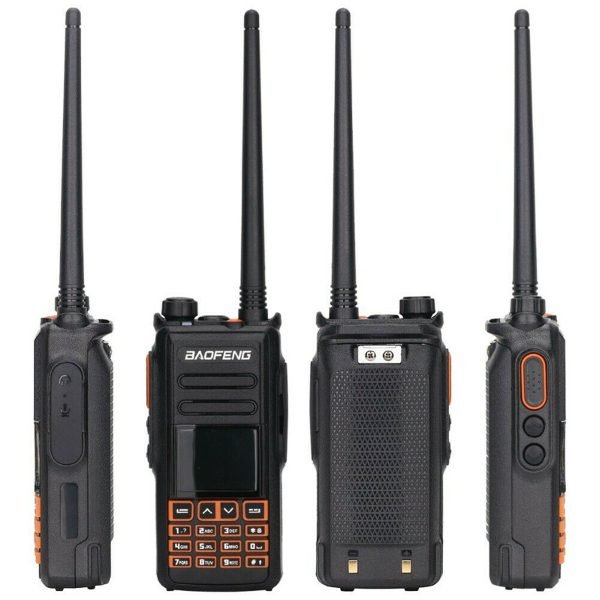

BAOFENG DM-X GPS Walkie Talkie Dual Band 2 Tier Dual Time Slot DMR Analog 2 Way Radio

SKU: 10036

В момента този артикул не е наличен.



1. GPS Function: Support longitude & latitude position.
2. Voice Record function: Built-in 1G memory card to record TX & RX voice continuously for 9 hours
3. Larger keyboard button than dm-860 dm-5r dm-1701 dm-1702,so that you can Easy to operate by your finger.
4. Larger full-Color Led Screen
5. Dual Band VHF 137-174MHz & UHF 400-480MHz
6. SMS fuction:  Supports SMS, text editing and draft in 64 characters in englsih, so that the text message calls can be sent when voice call is inconvenient.
7. High sound quality.
8. Manual writing -frequency.
9. High/Low power mode.
10. Larger Capacity Li-ion Battery Equipped with a 2200mAh Li-ion battery. Up to 18 hours work time and 48 hours of standby time. It lasts 30% longer than the other DMR radio. DM-X is light weight and handy, perfect for long QSO’s.
11. More keypad operations Channel names, TX & RX frequencies, channel number, tones and etc. can all be programmed through the keypad. Users can also customize the top and side buttons for their favorite functions.
12. Talking Range:The talking range of Baofeng DM-X can be as far as 5KM (3 Miles) under the visible range. There are other factors that affect the talking range of a two-way radio. such as weather, exact frequency used, and obstructions etc.


New: A brand-new, unused, unopened, undamaged item in its original packaging
Type: Upgrade of DM-1702 Digital Walkie Talkie
Support: DMR repeater function
Brand: Baofeng
Power Output: 5W
Baofeng DMR Radio: Ham Amateur Two Way Radio
DMR Tier II VFO: Baofeng Tier 2 Digital Walkie Talkie
Frequency Range: Dual band VHF 136-174MHz UHF400-470MHz
Working Time: 18H Talk Range: 3-10km
Standby Time: 48H Storage Channel: 1024
Mototrbo Tier: II
Material: Plastic and metal
Function: GPS,Voice Record
Dimensions: 13.3 x 6.2 x 3.2cm/5.24“ x 2.44″ x 1.26″(Antenna Not included)
Time slot: Dual Battery
Capacity: 2200mAh
Text Messages: Yes
Display: Color LCD display
Record: 9H
Analog & Digital: DMR Tier I & II Radio
SMS: SMS function
Walkie Talkie: DM-X
Frequency Range: VHF:136-174MHz, UHF:400-470MHz (Dual Band)
Memory Channel: 1024
Operating Voltage: DC 7.4V
Frequency stability: ±1.0ppm
Demission: 136 x 62 x 36mm (no including the antenna)
Operating environment: -30℃-+60℃
Weight: Approach.274g(including the battery and antenna)
Output power: High: 5W Low: 1W
Adjacent channel power: ≤65dB ≤60dB
Output consumption: Analog≤1.6A Digital≤0.9A
Audio response: +1~3dB
Standby current consumption: ≤0.18A
Digital Protocol: ETSI-TS102 361-1,-2,-3
Modulation distortion: ≤5%
Vocoder type: AMBE+2 TM
FM/FM modulation: 16K¢F3E, 25KHz 141K¢F3E, 20KHz 11K¢F3E, 12.5KHz
4FSK/4FSK digital modulation: 12.5KHz for data:7K60FXD 12.5KHz for data and voice:7K60FXE
Signal-to-noise(wide/narrow): ≥45dB,25KHz ≥40dB,12.5KHz
Antenna Port Spurious: 9KHz-1GHz: ≤-36dBm 1GHz-12.75GHz: ≤-30dBm
Analog receive sensitivity: -122dBm (12dB SINAD)
Digital receive sensitivity: -122dBm (BER≤5%)
Audio power: 1W
Audio distortion: <10%
Signal imitation: ≥70dB
Audio response: +1~3dB
Receive current: ≤380mA
Intermediation(wide/narrow): ≥62dB/≥58dB
Adjacent channel selectivity: ≥65dB/≥60dB
PM noise: ≥45dB,25KHz / ≥40dB,12.5KHz
Package Included:
1 x 2200mAh Li-ion Battery Pack
1 x Charger Unit with AC Adapter
1 x Antenna
1 x Hand Strap
1 x Belt Clip
1 x User Manual
1 x Power Adapter(According to different countries, we will send corresponding adapter.)

Detail Pictures:
